TOP HI-TECH INC.

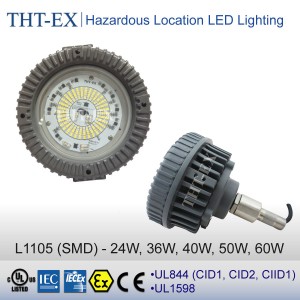

ATEX-24W, 36W, 40W, 50W, 60W - L1105 (SMD)
Features:
  • Model No.:L1105 (SMD)
  • Suitable for various Hazardous Locations
  • LED Lighting provides 2 million times power cycle
  • High corrosion resistance
  • small volume and light weight
  • Easy installation and maintenance
  • Long lifespan
  • IP rating IP67 (NEMA 6)
Listing:
  • ▌★85℃ Heat Resistant★▌
  • Zone 1, Zone 2
  • Zone 21, Zone 22
  • II 2 G Ex d IIB+H2 T6...T4 Gb
  • II 2 D Ex tb IIIC T108˚C Db
  • Light color: Cool White / Warm White
Show all Hide all
Specification
Electrical Ratings
Voltage 120V / 277V AC
Frequency 50Hz / 60Hz
Wattage (Amps) 24W (0.08 ~ 0.2A)  36W (0.12 ~ 0.3A)  40W (0.14 ~ 0.33A)  50W (0.18 ~ 0.42A)  60W (0.21 ~ 0.5A)
Ambient Temperature -20℃ ~ 40℃
Power Factor >0.9
Raw Materials
Net Weight 5 Kg
Housing Aluminum Alloy
Screws Stainless Steel
Tempered Glass IEC Standards impact resistant> 4 Joule
Photometrical Information
CCT 5000K±10% / 3000K±10%
CRI >70 (Cool White) / >80 (Warm White)
Lum/Watt. 80~85 (Cool White) / 70~80 (Warm White)
Beam Angle ≧ 110° (Cool White) /  ≧ 110° (Warm White)
