TOP HI-TECH INC.

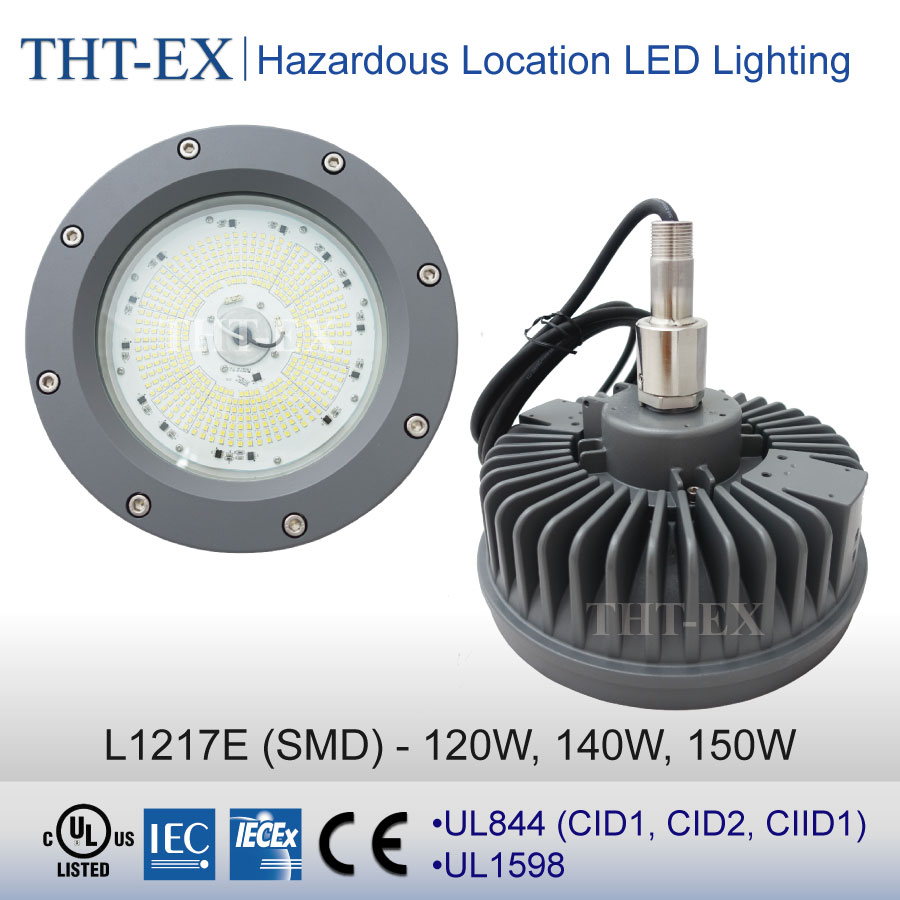

UL844-CID1, 120W, 140W, 150W - L1217E
Features:
  • Model No.:L1217E
  • Suitable for various Hazardous Locations
  • LED Lighting provides 2 million times power cycle
  • High corrosion resistance
  • small volume and light weight
  • Easy installation and maintenance
  • Long lifespan
  • IP rating IP67 (NEMA 6)
Listing:
  • ▌★Up to 85℃ Heat Resistant★▌
  • UL844 - Class I, Division 1, Group B, C and D
  • UL844 - Class II, Division 1, Group E, F and G
  • UL844 - Class III
  • UL1598
  • Light color: Cool White / Warm White
Show all Hide all
Specification
Video:
L1217E with Pole Adapter- https://youtu.be/aEIbJYCYRaI


Electrical Ratings
Voltage 120V / 277V AC
Frequency 50Hz / 60Hz
Wattage (Amps) 120W (0.43A~1.09A)   140W(0.51A~1.27A)   150W(0.54A~1.36A)
Ambient Temperature -40℃ ~ +40℃, T5
Power Factor > 0.9
Raw Materials
Net Weight 10.7 kg (23.6 lb)
Housing Aluminum Alloy
Screws Stainless Steel
Tempered Glass IEC Standards impact resistant> 4 Joule
Photometrical Information
CCT 5000K±10% / 3000K±10%
CRI >80 (Cool White) / >80 (Warm White)
Lum/Watt.  ≧95 (Cool White) /  ≧ 90 (Warm White)
Beam Angle  ≧ 110° (Cool White) /  ≧ 110° (Warm White)
