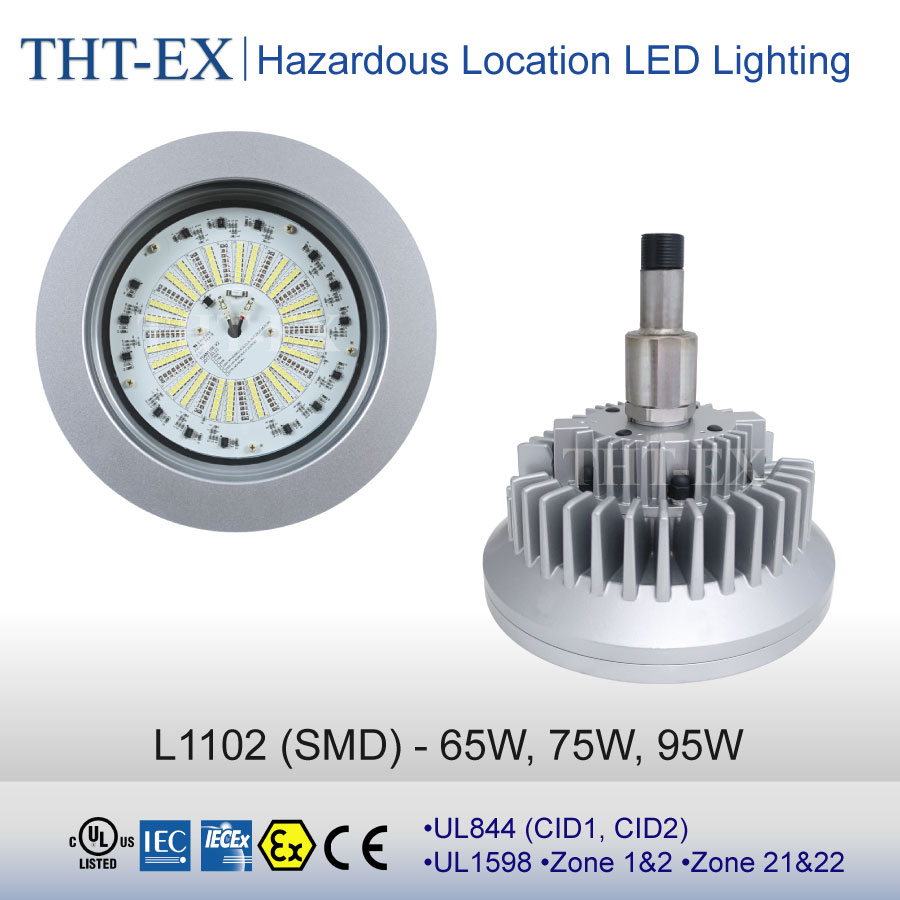

UL844-CID1, 65W, 75W, 95W - L1102 (SMD)
Features:
  • Model No.:L1102 (SMD)
  • Suitable for various Hazardous Locations
  • LED Lighting provides 2 million times power cycle
  • High corrosion resistance
  • small volume and light weight
  • Easy installation and maintenance
  • Long lifespan
  • IP rating IP67 (NEMA 6)
Listing:
  • ▌★Up to 100℃ Heat Resistant★▌
  • UL844 - Class I, Division 1, Group B, C, D.
  • UL844 - Class II, Division 1, Group E, F, G
  • UL844 - Class III
  • UL1598
  • Light color: Cool White / Warm White
Show all Hide all
Specification
Electrical Ratings
Voltage 120V / 277V AC
Frequency 50Hz / 60Hz
Wattage (Amps) 65W (0.23 ~ 0.54A)   75W (0.27 ~ 0.63A)   95W (0.34 ~ 0.793A)
Ambient Temperature CID1: -40°C ~ +40°C, T5 / CIID1: +40°C, T5
Power Factor >0.9
Raw Materials
Net Weight 5.5 Kg (12.1 lb)
Housing Aluminum Alloy
Screws Stainless Steel
Tempered Glass IEC Standards impact resistant> 4 Joule
Photometrical Information
CCT 5000K±10% / 3000K±10%
CRI >70 (Cool White) / >80 (Warm White)
Lum/Watt. ≧ 100 (Cool White) / ≧ 90 (Warm White)
Beam Angle ≧ 110° (Cool White) /  ≧ 110° (Warm White)
