TOP HI-TECH INC.

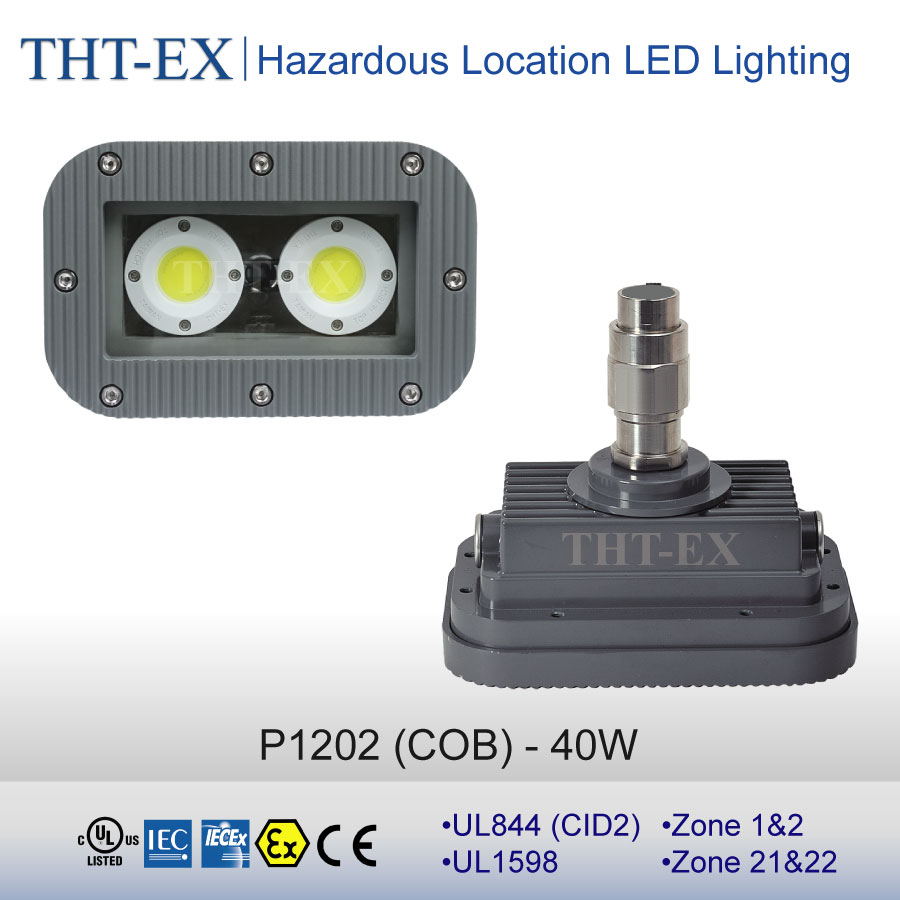

ATEX-40W - P1202
Features:
  • 50,000 hours minimum of total product service life
  • Low Energy Consumption up to 5X less than incandescent lighting
  • Instantaneous start-up compared to HID
  • High Luminance light output
  • Optional color temperature from Warm white to Cool white
  • Reduced carbon footprint
  • Mercury-free
  • IP rating IP67 (NEMA 6)
Listing:
  • ▌★85℃ Heat Resistant★▌
  • Zone 1, Zone 2
  • Zone 21, Zone 22
  • II 2 G Ex d IIB T5 Gb
  • II 2 D Ex tb IIIC T100˚C Db
  • Light color: Cool White / Warm White
Show all Hide all
Specification
Electrical Ratings
Voltage 24V / 110V / 220V AC
Frequency 50Hz / 60Hz
Wattage (Amps) 40W (0.08 ~ 1.67A)
Ambient Temperature -20℃ ~ 40℃
Power Factor >0.9
Raw Materials
Net Weight 3.7 Kg
Housing Aluminum Alloy
Screws Stainless Steel
Tempered Glass IEC Standards impact resistant> 4 Joule
Photometrical Information
CCT 5000K±10% / 3000K±10%
CRI >70 (Cool White) / >80 (Warm White)
Lum/Watt. ≧ 100 (Cool White) / ≧ 90 (Warm White)
Beam Angle ≧ 110° (Cool White) /  ≧ 110° (Warm White)
