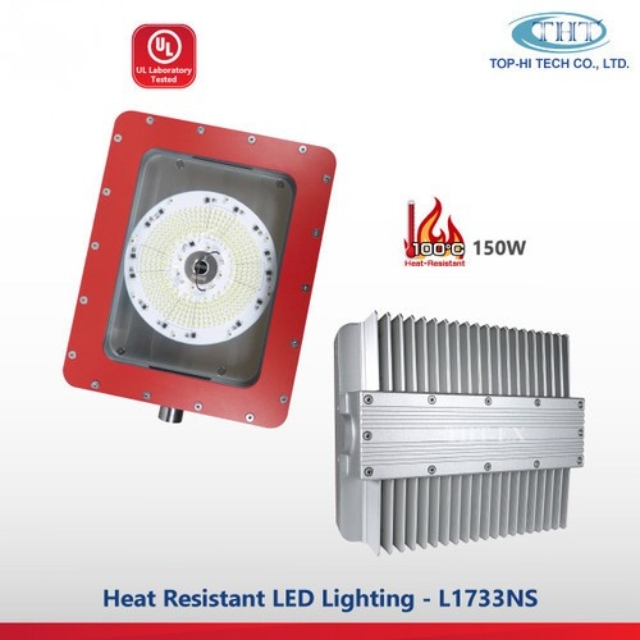

UL1598-Heat Resistant LED Light - L1733NS (Circle SMD)
Features:
  • AC LED Driver-less Technology
  • Intended for Use in High Ambient Temperature Environments
  • Up to 100°C(212°F) Heat Resistant
Listing:
  • 100°C(212°F) Heat Resistant
  • UL 844
  • UL 1598
  • UL 8750
  • IEC 60079
  • EN 60079
  • CSA C22.2 No.250.0
Show all Hide all
Specification

◎UL Verify: https://verify.ul.com/verifications/1182

*Watt. & Volt. lower than the test values are available upon request.

Electrical Ratings
Voltage 120V / 220V / 277V AC
Frequency 50Hz / 60Hz
Wattage (Amps)

150W

(【120V】 1.25A / 【220V】 0.68A / 【277V】 0.54A)

Ambient Temperature

+65°C ~ +100°C (+149°F ~ +212°F)

★ UL Laboratory Tested ★

Power Factor cos≧0.9
Raw Materials
Net Weight 11.9 kg (26.2 lb)
Housing Aluminum Alloy
Screws Stainless Steel
Glass Tempered Glass
Photometrical Information
CCT 5000K (Cool White)
CRI ≧70
Lum/Watt. 126 lm/w (±10%)
Beam Angle X-110° / Y-110°
