TOP HI-TECH INC.

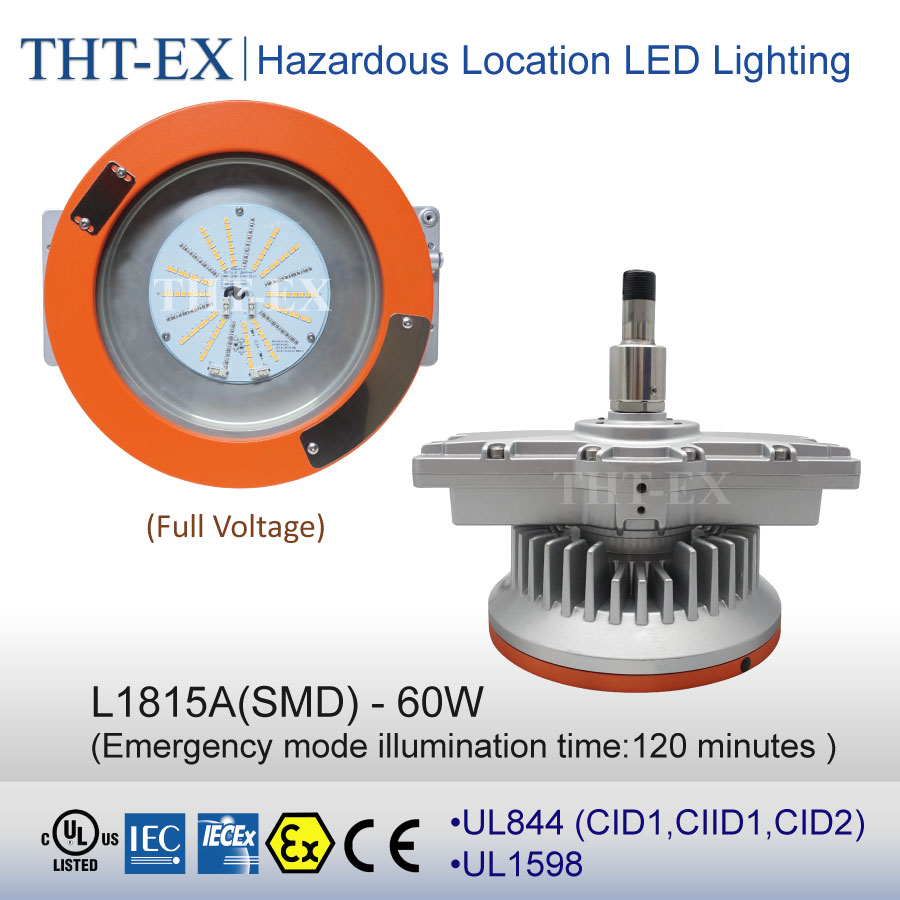

UL844-CID1, 60W - L1815A (with Battery Backup)
Features:
  • Model No.:L1815A (with Battery Backup)
  • Suitable for various Hazardous Locations
  • Provide up to 120 mins emergency lighting
  • Service life up to 60,000 hours
  • Energy consumption is at least 50% less than traditional HID light sources.
  • Reduced maintenance and improved light quality.
  • Separate wiring compartment for easy connection.
  • IP rating IP67 (NEMA 6)
Listing:
  • UL844 - Class I, Division 1 (Groups B, C and D)
  • Class II, Division 1 (Groups E, F and G)
  • Class III
  • UL1598
  • Light color: Cool White / Warm White
Show all Hide all
Specification
Video:
L1815A with Battery Backup - https://youtu.be/Ix9GYVNmZH4



Electrical Ratings
Voltage 120V~277V AC
Frequency 50Hz / 60Hz
Wattage (Amps) 60W (0.20A~0.50A)
Ambient Temperature CID1: -20°C ~ +40°C, T5 / CIID1: +40°C, T4A
Power Factor >0.9
Raw Materials
Net Weight 9.1 kg (20.1 lb)
Housing Aluminum Alloy
Screws Stainless Steel
Tempered Glass Impact Resistant Tempered Glass
Photometrical Information
CCT 5000K±10% / 3000K±10%
CRI >70 (Cool White) / >80 (Warm White)
Lum/Watt. ≧ 72(Cool White) / ≧ 65 (Warm White)
Beam Angle X-110° / Y-110°
