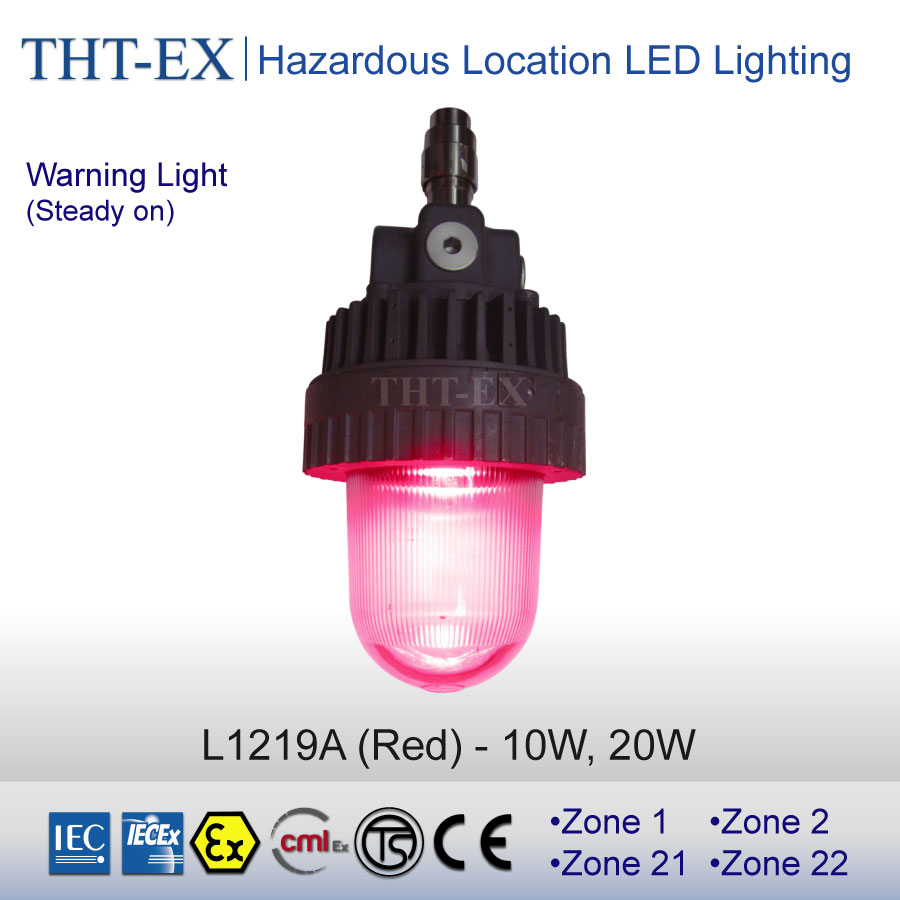

IECEx&ATEX-10W, 20W - L1219A Red (Explosion-proof Warning Light)
Features:
  • Model No.:L1219A(Red) (Explosion-proof Warning Light
  • Suitable for various Hazardous Locations
  • Service life up to 60,000 hours
  • IP rating IP67 (NEMA 6)
Listing:
  • ▌★100℃ Heat Resistant★▌
  • Ex d IIB + H2 T6 Gb
  • Ex tb IIIC T60˚C...T80˚C Db
  • II 2 G Ex d IIB+H2 T6 Gb
  • II 2 D Ex tb IIIC T60˚C...80˚C Db
Show all Hide all
Specification
Video:

Electrical Ratings
Voltage 220V AC
Frequency 50 / 60 Hz
Wattage (Amps) 10W / 20W
Ambient Temperature -20°C ~ +40°C, T6
Power Factor cos≧0.9
Raw Materials
Net Weight 8.0 kg (17.6 lb)
Housing Aluminum alloy
Screws Stainless Steel
Tempered Glass Tempered glass
Photometrical Information
CCT Red
Beam Angle X-110° / Y-110°
