TOP HI-TECH INC.

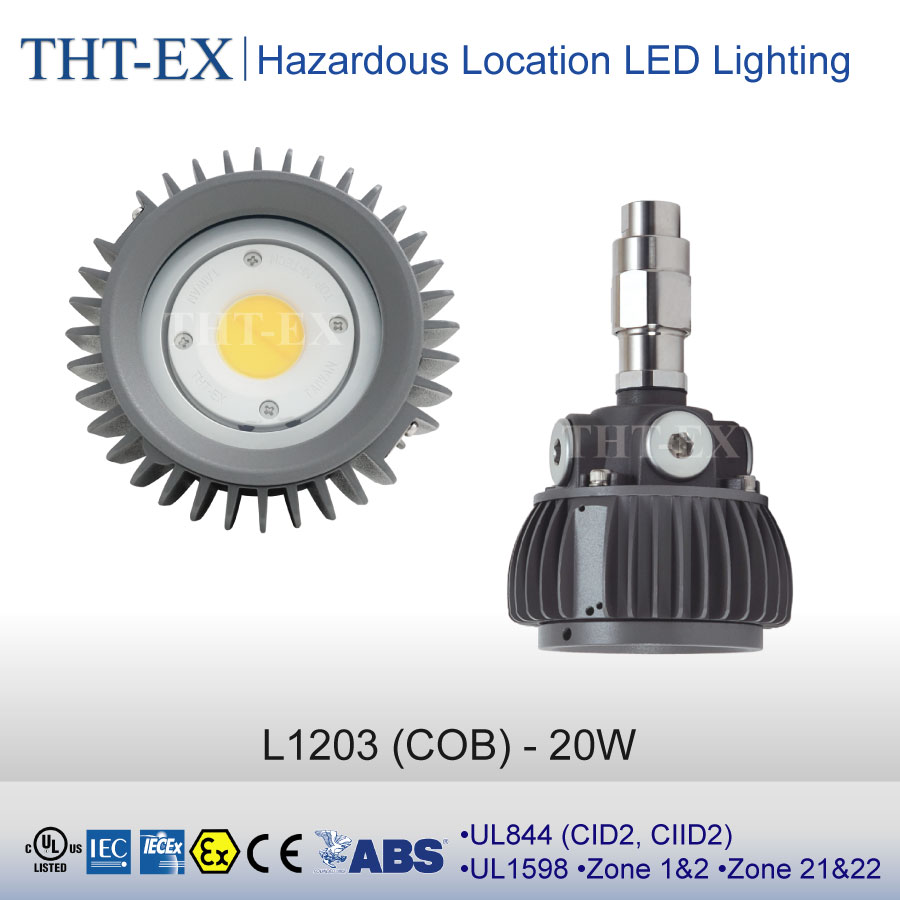

IECEx-20W - L1203
Features:
  • Model No.: L1203
  • Lighting can be started at low temperature -65℃
  • Lighting can be used at temperature 100℃
  • IP rating IP67 (NEMA 6)
  • Salt walter spray test 72 hours ~ 200 hours
  • low profile and esay installation
  • Driverless function provides longer service hour and less malfunction rate
Listing:
  • ▌★85℃ Heat Resistant★▌
  • Zone 1, Zone 2
  • Zone 21, Zone 22
  • Ex d IIB+H2 T5...T4 Gb
  • Ex tb IIIC T105℃ Db
  • Light color: Cool White / Warm White
Show all Hide all
Specification
Video:

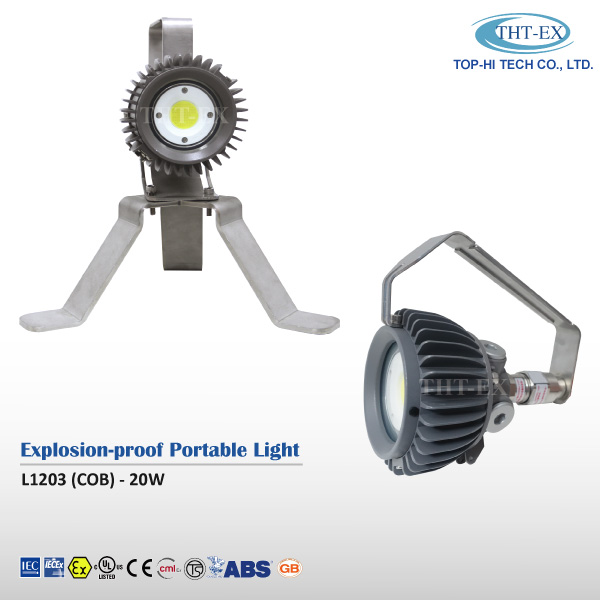

L1203 Portable Light - https://youtu.be/GcY5WsJxh_g

Electrical Ratings
Voltage 24V / 110V / 220V AC
Frequency 50Hz / 60Hz
Wattage (Amps) 20W (0.09 ~ 0.83A)
Ambient Temperature -20℃ ~ 40℃
Power Factor >0.9
Raw Materials
Net Weight 1.8 Kg
Housing Aluminum Alloy
Screws Stainless Steel
Tempered Glass IEC Standards impact resistant> 4 Joule
Photometrical Information
CCT 5000K±10% / 3000K±10%
CRI >70 (Cool White) / >80 (Warm White)
Lum/Watt. ≧ 100 (Cool White) / ≧ 90 (Warm White)
Beam Angle ≧ 110° (Cool White) /  ≧ 110° (Warm White)
