TOP HI-TECH INC.

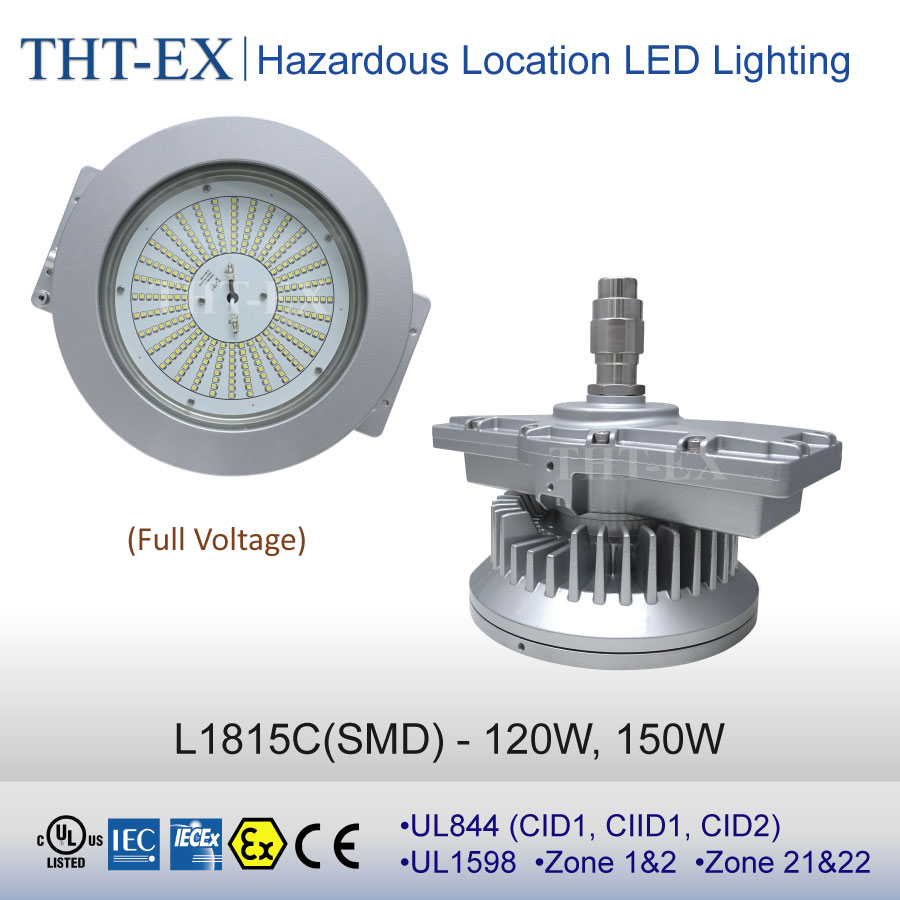

IECEx-120W, 150W - L1815C (SMD)
Features:
  • Model No.:L815C (SMD)
  • Suitable for various Hazardous Locations
  • 150W high power lighting
  • Excellent Lighting Efficiency
  • Service life up to 60,000 hours
  • IP rating IP67 (NEMA 6)
Listing:
  • Zone 1, Zone 2
  • Zone 21, Zone 22
  • Ex db IIC T5 Gb
  • Ex tb IIIC T100°C Db
  • Light color: Cool White / Warm White
Show all Hide all
Specification
Video:

Electrical Ratings
Voltage 100V~277V / 200V~480V AC (Full Voltage)
Frequency 50Hz / 60Hz
Wattage (Amps) 120W(0.25A~1.20A) / 150W(0.31A~1.50A)
Ambient Temperature -20°C ~ +40°C, T5
Power Factor >0.9
Raw Materials
Net Weight 9.3 kg (20.5 lb)
Housing Aluminum Alloy
Screws Stainless Steel
Tempered Glass Tempered glass
Photometrical Information
CCT 6500K±10% / 2700K±10%
CRI >70 (Cool White) / >80 (Warm White)
Lum/Watt. ≧ 127 (Cool White) / ≧ 120 (Warm White)
Beam Angle ≧ 110° (Cool White) /  ≧ 110° (Warm White)
