TOP HI-TECH INC.

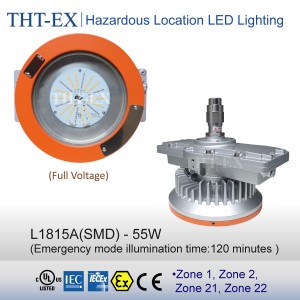

IECEx-55W - L1815A with Battery Backup (SMD)
Features:
  • Model No.:L815A (SMD)
  • Suitable for various Hazardous Locations
  • Provide up to 120 mins energency lighting
  • Emergency Mode Output 40W
  • Service life up to 60,000 hours
  • IP rating IP67 (NEMA 6)
Listing:
  • Zone 1, Zone 2
  • Zone 21, Zone 22
  • Ex db IIC T6 Gb
  • Ex tb IIIC T80°C Db
  • Light color: Cool White / Warm White
Show all Hide all
Specification
Video:
L1815A with Battery Backup - https://youtu.be/Ix9GYVNmZH4



Electrical Ratings
Voltage 100V~277V AC
Frequency 50Hz / 60Hz
Wattage (Amps) 55W (0.20A~0.55A)
Ambient Temperature 0°C ~ +40°C, T6
Power Factor >0.9
Raw Materials
Net Weight 9.1 kg (20.1 lb)
Housing Aluminum Alloy
Screws Stainless Steel
Tempered Glass Tempered glass
Photometrical Information
CCT 5000K±10% / 3000K±10%
CRI >70 (Cool White) / >80 (Warm White)
Lum/Watt. ≧ 73 (Cool White) / ≧ 65 (Warm White)
Beam Angle ≧ 110° (Cool White) /  ≧ 110° (Warm White)
