TOP HI-TECH INC.

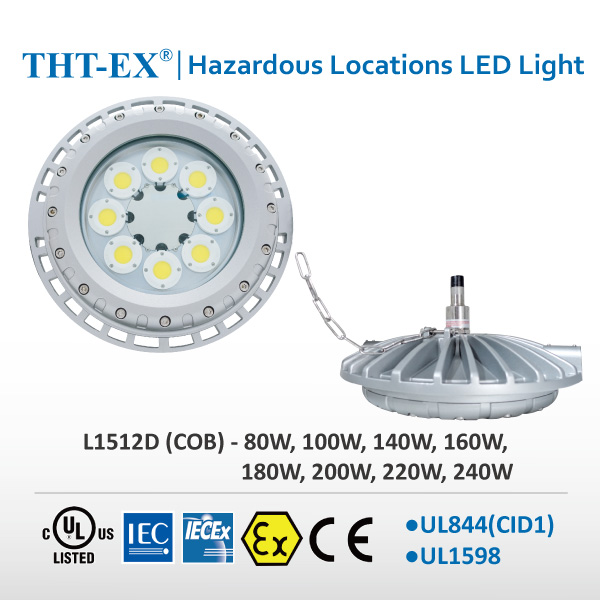

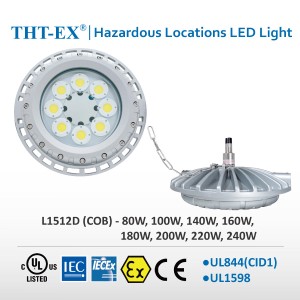

UL844-CID1, 140W, 160W, 180W, 200W, 220W, 240W - L1512D (COB)
Features:
  • Model No.:L1512D (COB)
  • Suitable for various Hazardous Locations
  • LED Lighting provides 2 million times power cycle
  • High corrosion resistance
  • small volume and light weight
  • Easy installation and maintenance
  • Long lifespan
  • IP rating IP67 (NEMA 6)
Listing:
  • ▌★Up to 100℃ Heat Resistant★▌
  • UL844 - Class I, Division 1, Group B, C and D
  • UL844 - Class II, Division 1, Group E, F and G
  • UL844 - Class III
  • UL1598
  • Light color: Cool White / Warm White
Show all Hide all
Specification
Video:



Electrical Ratings
Voltage 120V / 277V / 347V / 480V AC
Frequency 50Hz / 60Hz
Wattage (Amps) 140W / 160W / 180W / 200W / 220W / 240W (0.29A~2A)
Ambient Temperature CID1:-25℃ ~ +40℃, T5 / -25℃ ~ +55℃, T4A; CIID1:-40℃, T4A / 55℃, T4
Power Factor >0.9, >0.87(480V)
Raw Materials
Net Weight 18.3kg (40.3lb)
Housing Aluminum Alloy
Screws Stainless Steel
Tempered Glass IEC Standards impact resistant> 4 Joule
Photometrical Information
CCT 5000K±10% / 3000K±10%
CRI >70 (Cool White) / >80 (Warm White)
Lum/Watt. ≧ 93 (Cool White) / ≧ 88 (Warm White)
Beam Angle ≧ 110° (Cool White) /  ≧ 110° (Warm White)
