TOP HI-TECH INC.

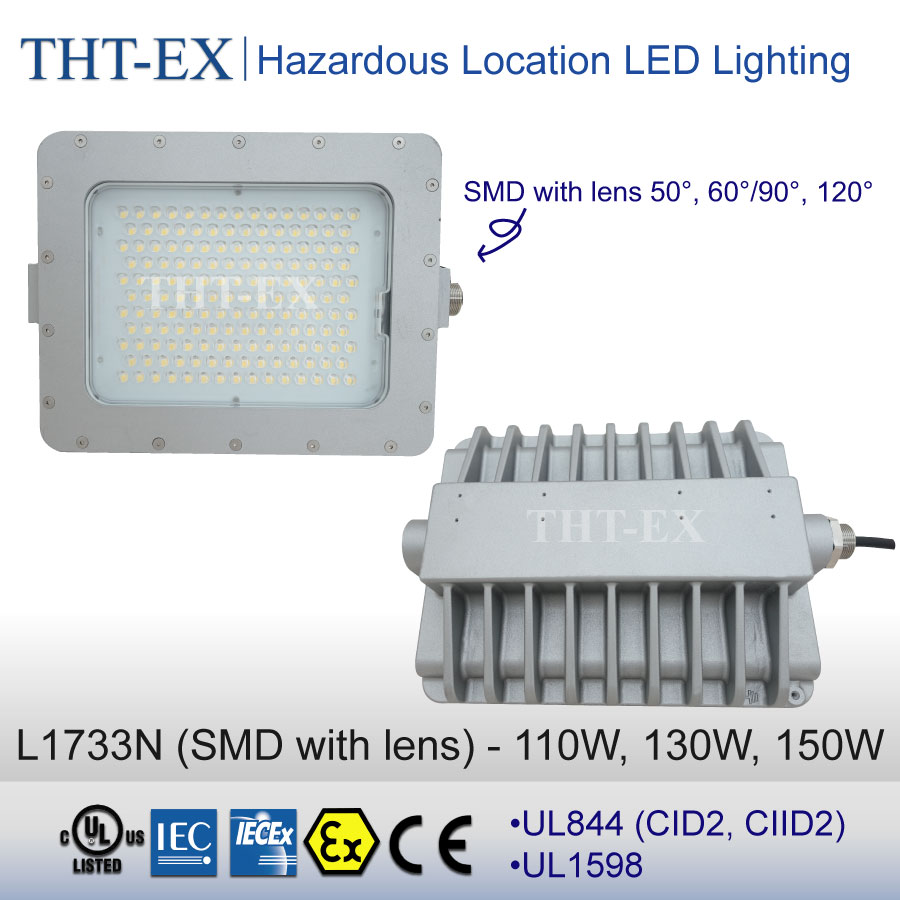

ATEX-110W, 130W, 150W - L1733N (SMD with Lens 50°, 60°/90°, 120°)
Features:
  • Model No.:L1733N (SMD with Lens 50°, 60°/90°, 120°)
  • Suitable for various Hazardous Locations
  • LED Lighting provides 2 million times power cycle
  • High corrosion resistance
  • small volume and light weight
  • Easy installation and maintenance
  • Long lifespan
  • IP rating IP67 (NEMA 6)
Listing:
  • Zone 2
  • Zone 21, Zone 22
  • II 3 G Ex nR IIC T6 Gc
  • II 2 D Ex tb IIIC T85℃ Db
  • Light color: Cool White / Warm White
Show all Hide all
Specification
Video:
L1733N LED with Lens - https://youtu.be/DkIwcZtzFhY



Electrical Ratings
Voltage 100V-277V AC
Frequency 50Hz / 60Hz
Wattage (Amps) 110W / 130W / 150W (0.39A~1.5A)
Ambient Temperature -20℃ ~ +40℃, T6
Power Factor >0.9
Raw Materials
Net Weight 9.4kg
Housing Aluminum Alloy
Screws Stainless Steel
Tempered Glass IEC Standards impact resistant> 4 Joule
Photometrical Information
CCT 5000K±10% / 3000K±10%
CRI >70 (Cool White) / >80 (Warm White)
Lum/Watt. ≧ 100 (Cool White) / ≧ 100 (Warm White)
Beam Angle ≧ 110° (Cool White) /  ≧ 110° (Warm White)
