TOP HI-TECH INC.

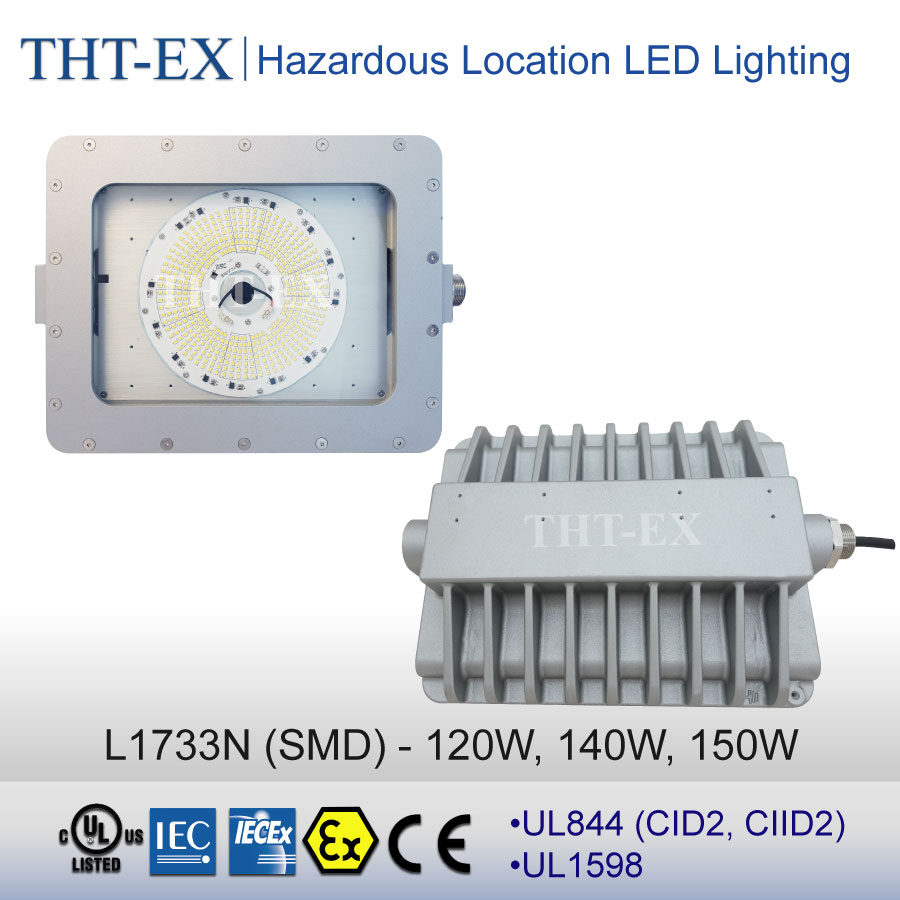

ATEX-120W, 140W, 150W - L1733N (SMD)
Features:
  • Model No.:L1733N (SMD)
  • Suitable for various Hazardous Locations
  • LED Lighting provides 2 million times power cycle
  • High corrosion resistance
  • small volume and light weight
  • Easy installation and maintenance
  • Long lifespan
  • IP rating IP67 (NEMA 6)
Listing:
  • ▌★85℃ Heat Resistant★▌
  • Zone 2
  • Zone 21, Zone 22
  • II 3 G Ex nR IIC T5 Gc
  • II 2 D Ex tb IIIC T100℃ Db
  • Light color: Cool White / Warm White
Show all Hide all
Specification
Video:



Electrical Ratings
Voltage 110V / 220V / 277V AC
Frequency 50Hz / 60Hz
Wattage (Amps) 120W / 140W / 150W (0.43A~1.36A)
Ambient Temperature -20℃ ~ +50℃, T5
Power Factor >0.9
Raw Materials
Net Weight 8.2kg
Housing Aluminum Alloy
Screws Stainless Steel
Tempered Glass IEC Standards impact resistant> 4 Joule
Photometrical Information
CCT 5000K±10% / 3000K±10%
CRI >70 (Cool White) / >80 (Warm White)
Lum/Watt. ≧ 100 (Cool White) / ≧ 100 (Warm White)
Beam Angle ≧ 110° (Cool White) /  ≧ 110° (Warm White)
